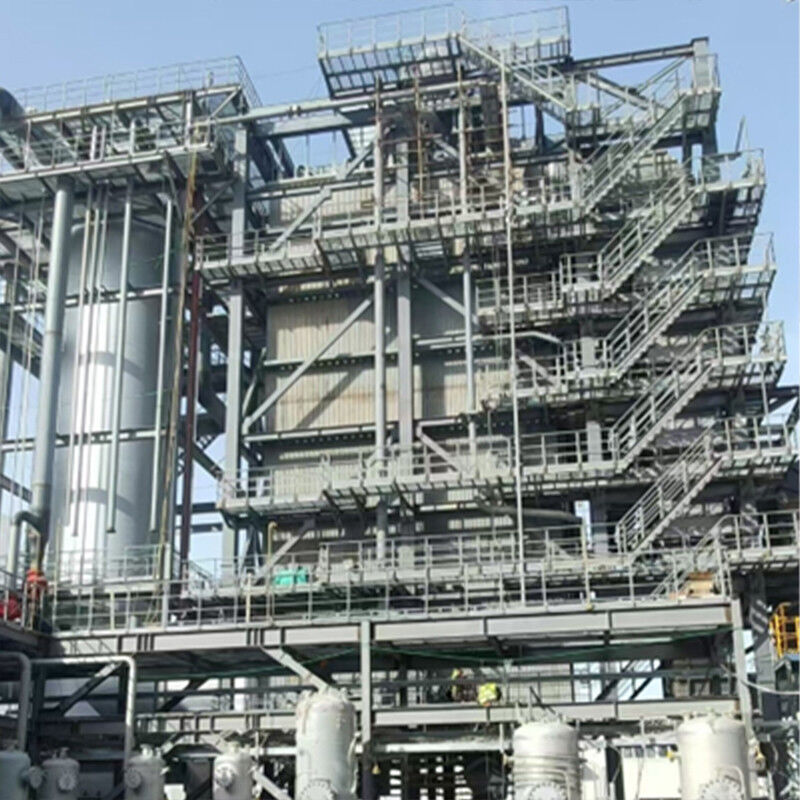

Water Cooled Membrane Water Wall Evaporator Economizer Integrated Optimal Performance

The membrane wall boiler features a vertical modular layout that integrates water-cooled wall, evaporator, and economizer into a single unit. Through compact structural design and thermal shock-resistant materials, it ensures system stability under extreme temperature fluctuations. The gradient composite heat exchange technology employs a graded heat recovery path for deep utilization of flue gas heat, significantly reducing exhaust temperature and improving thermal efficiency.

• Extreme high temperature resistance with ceramic coating and vertical package structure
• High efficiency waste heat gradient recovery with three-stage heat exchange
• Ultra-low maintenance cost with packaged ash hopper design
• Withstands ultra-high temperature flue gas erosion and corrosive industrial environments

• Extreme High Temperature Resistance: Water-cooled wall ceramic coating increases thermal stress deformation resistance by 40%
• High Efficiency Waste Heat Recovery: Three-stage heat exchange increases flue gas sensible heat recovery rate by 12%
• Ultra-Low Maintenance Cost: Packaged ash hopper design reduces cleaning frequency by 60% and annual operation costs by 35%

Ruiding operates the Jiangsu Province Clean Incineration Resource Engineering Technology Center and JICUI-Ruidings Joint Innovation Center, equipped with advanced detection equipment including ICP emission spectrometry, atomic absorption spectrophotometry, and comprehensive analysis capabilities for industrial applications.

Ruiding specializes in engineering, fabrication, construction, and commissioning of industrial waste combustion treatment systems including thermal oxidizers, heat recovery systems, pressure vessels, and flue gas treatment systems.

• Environmental Protection Engineering Class 2 EPC certificate
• ASME Certificate
• Class A boiler manufacturing license
• Class A boiler installation and maintenance certificate
• A2 pressure vessel design and manufacturing certificate
• Pressure pipeline design & construction certificates
