Energy Saving Regenerative Catalytic Oxidizer Intelligent VOCs Treatment
|
Energy Saving Regenerative Catalytic Oxidizer Intelligent VOCs Treatment
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC (EAEU) |
| Model Number | Regenerative catalytic oxidizer |
Product Details
Application:
VOCs Treatment
Material Of Construction:
Stainless Steel
Heat Source:
Natural Gas
Temperature Range:
500-800°C
Control System:
PLC
Maintenance Requirements:
Low
Delivery Time:
2-6months
Warranty:
1 Year
HS Code:
8417809090
Highlight:
VOCs treatment Regenerative Catalytic Oxidizer
,Energy Saving Regenerative Catalytic Oxidizer
,VOCs Treatment regenerative catalytic system
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description

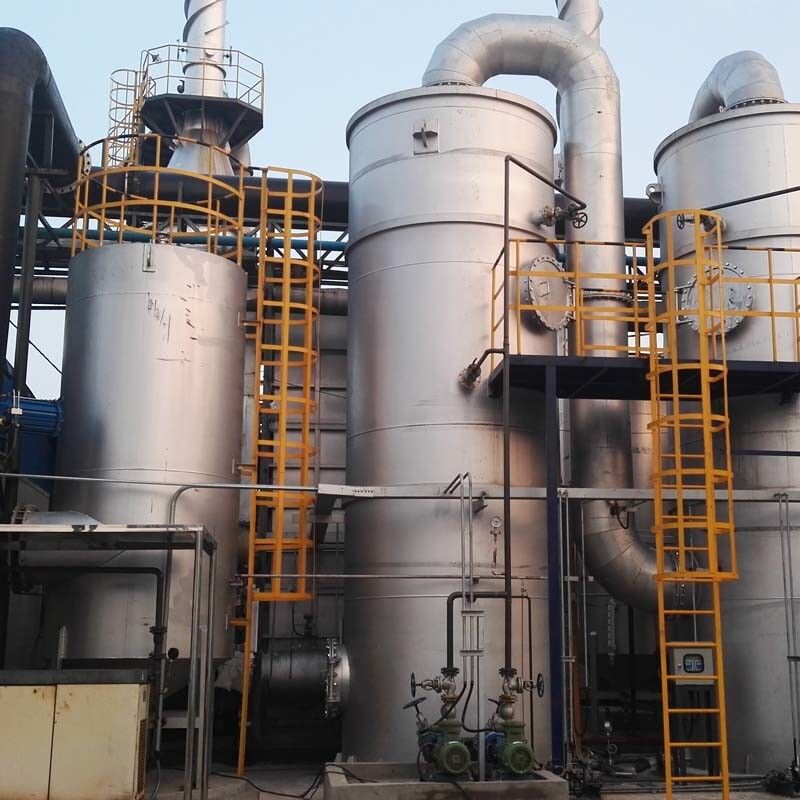

Energy Saving Regenerative Catalytic Oxidizer for Intelligent VOCs Treatment
This advanced heat storage catalytic furnace delivers exceptional safety performance with comprehensive protection systems including explosion-proof devices and temperature alarms. Engineered for strong corrosion resistance, it reliably treats waste gas containing corrosive components while ensuring long-term operational safety.
Technical Specifications
| Parameter/Component | Specification |
|---|---|
| Design Treatment Capacity | 17,000 Nm³/h (normal cubic meters per hour at 0°C, 1 atm) |
| Inlet VOC Concentration | 2,000 mg/Nm³ (typical for medium-concentration industrial emissions) |
| Major Equipment | Water seal tank (with integrated demisting section) Flue gas diversion channel (equipped with electric heater) Regenerative catalytic oxidizer (RCO) with ceramic-packed beds + Pt/Pd catalyst |
Process Operation
Untreated waste gas initially passes through a pre-stage water seal tank equipped with demisting section to remove moisture and particulate matter. After pressurization by the waste gas fan, it flows through a flame arrester into the ceramic heat storage layer where preheating to approximately 350°C occurs.
The preheated gas enters the catalytic layer where organic components undergo complete oxidation and decomposition under catalytic action. An electric heating device in the flue gas diversion channel ensures the catalytic bed outlet temperature reaches 400°C, guaranteeing thorough destruction of organic pollutants.
Resulting flue gas undergoes secondary distribution through the diversion channel into additional regenerative chambers, exchanging heat with ceramic heat storage packing. After heat recovery, the cooled flue gas discharges through the chimney, meeting all emission standards.
Technology Principle
The Regenerative Catalytic Oxidizer (RCO) utilizes two insulated chambers filled with high-temperature ceramic media. During operation, the process stream enters an energy recovery chamber where ceramic media preheats it before introduction to the oxidation chamber. As the stream moves through the inlet bed, temperature rises significantly.
After oxidation in the combustion chamber through catalyst action, pollutants convert to CO₂ and water vapor, releasing thermal energy. Clean gas exits through the second recovery bed, leaving heat in the ceramic media to preheat the inlet stream in subsequent cycles. This combination of catalyst and ceramic media significantly reduces fuel consumption during thermal oxidation, resulting in lower operating costs.
Key Advantages
- Combines regenerative thermal oxidation (RTO) and catalytic oxidation (CO) technologies for effective VOC elimination with simple process flow, compact design, and reliable operation
- High purification efficiency with low operational costs
- Zero wastewater generation and no NOx pollutants
- Compatible with waste heat boilers to generate steam for production, achieving energy-saving objectives
Research & Development
Ruiding operates the Jiangsu Province Clean Incineration Resource Engineering Technology Center and the JICUI-Ruidings Joint Innovation Center Key Laboratory. Equipped with advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, and comprehensive analysis capabilities for heavy metals, elemental analysis, off-gas calorific value, and volatile waste analysis.
Company Overview
Ruiding specializes in engineering, fabrication, construction, and commissioning of industrial waste combustion treatment systems including thermal oxidizers, heat recovery systems, pressurized vessels, flue gas treatment systems, and plate heat exchangers.
With Environmental Protection Engineering Class 2 EPC certification, ASME Certificate, Class A boiler manufacturing license, and A2 pressure vessel certification, Ruiding operates from over 250,000 square meters of building area with nearly 300 technical staff. The company has completed over 500 engineering projects across various industries with significant presence in petrochemical sectors.
Frequently Asked Questions
What is the company's main business?
Focus on R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, with supporting equipment including heat exchangers and sludge dryers.
Do you have industry qualification certification?
Certified with quality, environment, occupational health, and safety management systems. Holds second-level environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing, A2 pressure vessel design and manufacturing, and Class A environmental pollution control qualifications.
What are the core products?
Waste gas incinerator: RTO, RCO, CO, TO, SCR
Waste liquid incinerator: Organic, salt-containing, heavy component residue
Solid incinerator: Rotary kiln, pyrolysis, fluidized bed, step-type
A-level boiler: Modular waste heat, tunnel waste heat, integrated incineration boiler
Plate heat exchanger: Fully welded pressure, vortex tube, spiral tube
Incineration auxiliary machine: Sludge dryer, customized burner, crusher, VOC catalyst
Waste liquid incinerator: Organic, salt-containing, heavy component residue
Solid incinerator: Rotary kiln, pyrolysis, fluidized bed, step-type
A-level boiler: Modular waste heat, tunnel waste heat, integrated incineration boiler
Plate heat exchanger: Fully welded pressure, vortex tube, spiral tube
Incineration auxiliary machine: Sludge dryer, customized burner, crusher, VOC catalyst
What technical advantages do you offer?
With 29 patented technologies covering incinerator structure optimization and heat recovery, Ruiding maintains a first-class design team with solid theoretical foundation and extensive practical experience. Designers combine domestic and international advanced device operations for optimized process and structural design with rapid response and customization capabilities.
What services do you provide?
Full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, including pressure pipeline and boiler renovation support.
Are there successful case references?
Extensive experience serving petroleum, chemical, pharmaceutical, and solid waste disposal industries with typical cases including organic waste gas RTO systems and chemical waste liquid incineration projects.
How to obtain cooperation or quotation?
Submit needs through official website online form or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China
Do you support international business cooperation?
Holding independent import and export rights, we provide equipment export and technical solution customization services for overseas customers.
