Efficient Heat Transfer Bulk Solid Plate Heat Exchanger Continuous Operation
|
Efficient Heat Transfer Bulk Solid Plate Heat Exchanger Continuous Operation
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC(EAEU) |
| Model Number | Bulk solid plate heat exchanger |
Product Details
Flow Configuration:
Parallel Or Counter-current
Inlet/Outlet Connection:
Flanged Or Threaded
Gasket Material:
Nitrile, EPDM, Or Silicone
Plate Thickness:
2-10 Mm
Material:
Stainless Steel
Plate Design:
Single Or Multi-pass
Delivery Time:
1 Week - 2months
Warranty:
1 Year
HS Code:
8419500090
Highlight:
Efficient Bulk Solid Plate Heat Exchanger
,Continuous Operation bulk solid heat exchanger
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description

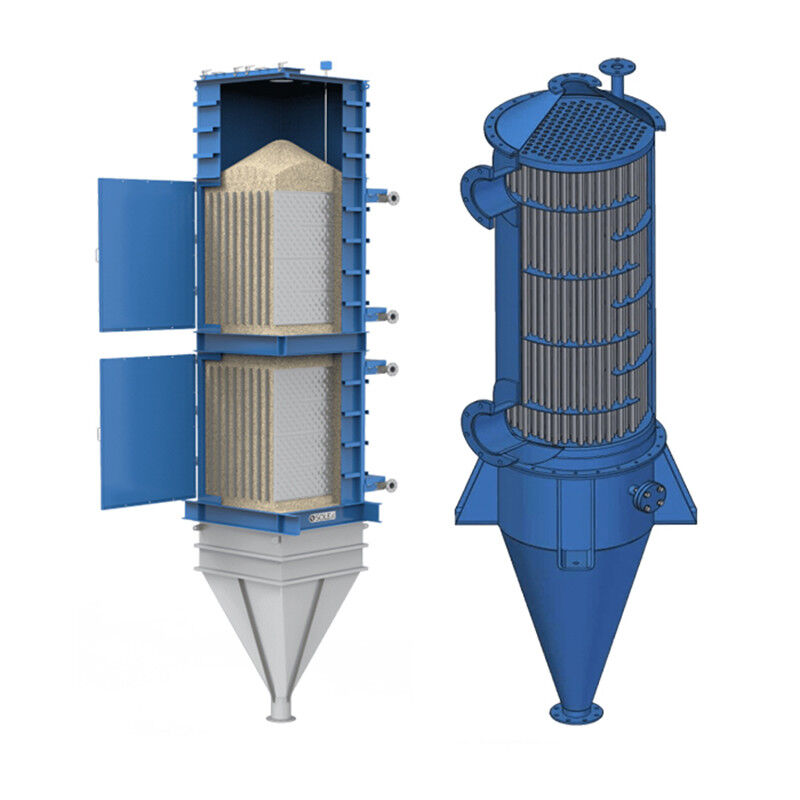

Efficient Heat Transfer Bulk Solid Plate Heat Exchanger
Continuous Operation Gas Solid Two Phase Flow
Overview
Bulk solid heat exchanger is a highly efficient heat exchange equipment designed for bulk materials such as particles and powders. It adopts unique gas-solid two-phase flow technology and realizes efficient heat transfer through countercurrent heat exchange principle. The modular design facilitates equipment installation and maintenance while offering high temperature resistance and wear resistance characteristics.
Ideal for material preheating, cooling and other process applications in metallurgy, chemical, and building materials industries. Significantly reduces energy consumption while ensuring large processing capacity.
Key Features
- Thickened plate design (2.0mm+2.0mm double pillow plate): Withstands pressure of 4.0MPa (industry standard ≤2.5MPa), supports heat transfer oil (400℃) and high-pressure steam (6MPa)
- Anti-thermal deformation structure: Laser welding + corrugation compensation technology improves thermal stability under high temperature conditions by 40%
- Intelligent temperature control interlock: Cuts off heat source in 0.5 seconds when temperature exceeds limits, with failure rate <0.1 times/year
- Applicable scenarios: High-temperature catalyst, activated carbon particle cooling, and high-temperature solid processing in refineries
Technical Advantages
The bulk solid heat exchanger features a 2.0mm+2.0mm thickened double pillow plate structure (industry standard ≤1.5mm), providing 60% higher pressure resistance than conventional products. It can stably carry 4.0MPa high-pressure steam or 400℃ high-temperature heat transfer oil.
Laser welding corrugation compensation technology effectively disperses thermal stress under extreme temperatures, improving thermal stability by 40% and ensuring continuous operation in high-load scenarios such as refining and chemical industries.
Equipped with intelligent temperature and pressure interlocking system that cuts off heat source and initiates safe discharge within 0.5 seconds when pressure/temperature exceeds limits. Annual failure rate approaches zero, providing integrated heat exchange solution with extreme pressure resistance, thermal change resistance and zero downtime for high-risk media treatment.
Applications
| Fertilizers | Urea, Ammonium Nitrate, NPK |
| Chemicals | Ammonium Sulphate, Soda Ash, Calcium Chloride |
| Plastics | Polyethylene, Nylon, PET Pellets, Polypropylene |
| Detergents and Phosphates | Various detergent compounds and phosphate materials |
| Food Products | Sugar, Salt, Seeds |
| Minerals | Sand, Resin coated Sand, Coals, Iron Carbide, Iron Ore |
| High Temperature Materials | Catalyst, Activated Carbon |
| Bio Solids Granules | Various biological solid granular materials |
Research & Development
Ruiding has established the Jiangsu Province Clean Incineration Resource Engineering Technology Center and the Key Laboratory of the JICUI-Ruidings Joint Innovation Center.
Our laboratory is equipped with advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester.
We possess capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis.
Company Profile
Ruiding specializes in engineering, fabrication, construction, and commissioning services for industrial waste combustion treatment systems including thermal oxidizers (incinerators), heat recovery systems (boilers), pressurized vessels, flue gas treatment systems (DeSOX, DeNOx) and plate heat exchangers.
Authorized with Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for pressure vessel, GC1, GC2 pressure pipeline designing & construction certificate.
Ruiding covers a building area of over 250,000 square meters with nearly 300 professional technical staff. We have completed over 500 engineering projects across various domestic and international industries, with significant market share in the petrochemical industry.
Frequently Asked Questions
What is the company's main business?
Focus on R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment such as heat exchangers and sludge dryers.
Do you have industry qualification certification?
We hold quality, environment, occupational health, and occupational hygiene and safety management system certifications, plus second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control qualification.
What are the core products?
- Waste gas incinerator: Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RCO), catalytic oxidation furnace (CO), high temperature thermal incinerator (TO), catalytic denitrification furnace (SCR)
- Waste liquid incinerator: Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
- Solid incinerator: Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
- A-level boiler: Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
- Plate heat exchanger: Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
- Incineration auxiliary machine: Sludge dryer, customized burner, solid waste crusher, VOC catalyst
What technical advantages do you offer?
We hold 29 patented technologies covering incinerator structure optimization and heat recovery. Our first-class design team combines solid theoretical foundation with rich practical experience, offering fast design response and optimization suggestions based on client requirements and processes.
What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
Are there successful cases for reference?
We have served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal with typical cases including organic waste gas RTO systems and chemical waste liquid incineration projects.
How to obtain cooperation or quotation?
Submit needs through our official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China
Is there international business cooperation?
Holding independent import and export rights, we provide equipment export and technical solution customization services for overseas customers.
