High Pressure 11MPa Steam Water Tube Boiler Independent Operation Energy Saving
|
High Pressure 11MPa Steam Water Tube Boiler Independent Operation Energy Saving
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC(EAEU) |
| Model Number | Water tube boiler |
Product Details
Boiler Model :
Q298/780-89.3-11/520
Rated Steam Pressure:
11MPa
Rated Steam Temperature:
520℃
Feedwater Flow Rate:
90.1 T/h
Feedwater Inlet Temperature:
115℃
Flue Gas Flow Rate:
297990Nm³/h
Delivery Time:
2-6months
Warranty:
1 Year
HS Code:
8402190000
Highlight:
high pressure steam water tube boiler
,Energy Saving water tube steam boiler
,11MPa steam water tube boiler
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description
High Pressure 11MPa Steam Water Tube Boiler
Independent operation energy-saving modular water tube boiler designed for industrial applications with thermal efficiency up to 98%.
Product Overview
This modular water tube boiler is engineered for industrial scenarios, featuring a high-efficiency water tube heat exchange structure that achieves thermal efficiency up to 98%, significantly reducing fuel consumption. It supports multiple fuel types including gas, fuel oil, and biomass, meeting high-temperature and high-pressure steam requirements for industries such as food processing, chemical, and pharmaceuticals. The modular design allows flexible capacity expansion, with multiple units capable of parallel connection for stable heating operations.

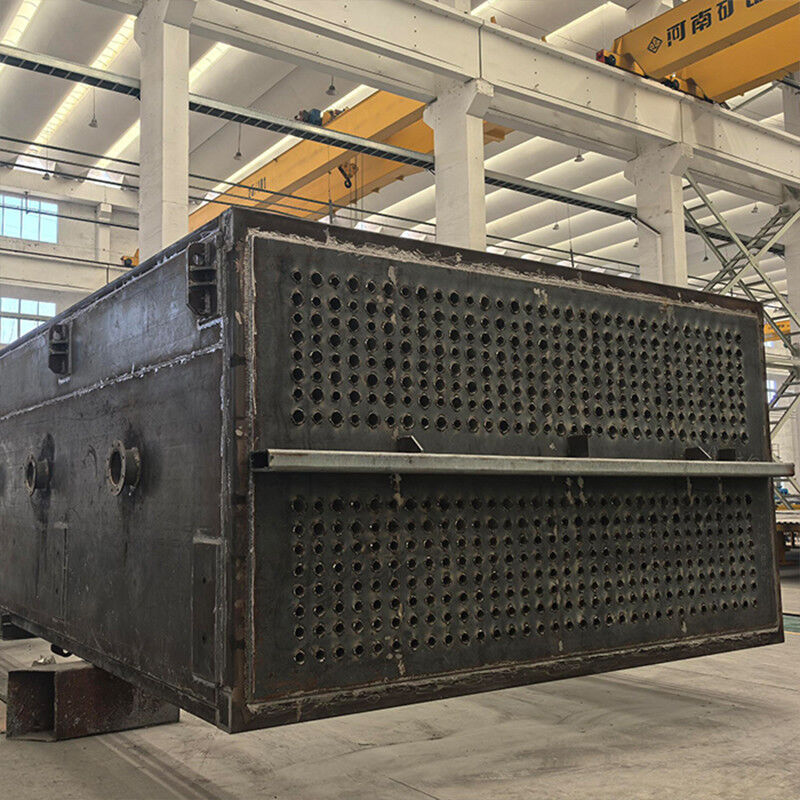

Product Image
Technical Design
This waste heat boiler adopts a "Л"-shaped layout, incorporating a steam drum, high-temperature superheater, low-temperature superheater, Evaporator 1 to Evaporator 5, High-temperature Economizer 1, High-temperature Economizer 2, Low-temperature Economizer 1, and Low-temperature Economizer 2. The heating surface equipment employs a modular structure. For precise regulation of superheater outlet steam temperature, a spray-type attemperator is installed between the high-temperature and low-temperature superheaters. To maintain heat transfer efficiency, shock wave soot blowers and acoustic soot blowers are arranged between heating surface modules for effective ash deposit removal.
Technical Specifications
| Parameter | Specification |
|---|---|
| Boiler Type | High temperature and high pressure, Type Л |
| Boiler Model | Q298/780-89.3-11/520 |
| Rated Steam Evaporation Capacity | 89.3 t/h |
| Rated Steam Pressure | 11MPa |
| Rated Steam Temperature | 520℃ |
| Feedwater Flow Rate | 90.1 t/h |
| Feedwater Inlet Temperature | 115℃ |
| Flue Gas Flow Rate | 297990Nm³/h |
| Flue Gas Temperature | 780℃ |
| Stack Gas Temperature | 190℃ |
| Layout of Boiler | Open-air Layout |
Key Advantages
- High Energy Efficiency: Significantly reduces energy consumption with high heat recovery efficiency
- Optimized Structure: Features high integration for easy maintenance and service
- Precise Temperature Control: Spray-type attemperator between high/low-temperature superheaters enables accurate steam temperature regulation
- Effective Ash Cleaning: Equipped with shock wave and acoustic soot blowers to efficiently remove ash from heating surfaces
- Industrial Compatibility: Meets large-scale waste heat recovery requirements in refineries and ensures continuous, stable output of high-pressure steam
Applications
Ideal for installation environments with limited space, such as industrial production steam supply, where rapid response to load changes is required.
Research & Development
Ruiding has established the Jiangsu Province Clean Incineration Resource Engineering Technology Center and the Key Laboratory of the JICUI-Ruidings Joint Innovation Center. This laboratory is equipped with advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. It possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis.
Company Profile
Ruiding specializes in the engineering, fabrication, construction, and commissioning services of industrial waste combustion treatment systems including thermal oxidizers (incinerators), heat recovery systems (boilers), pressurized vessels, flue gas treatment systems (DeSOX, DeNOx), and plate heat exchangers.
Ruiding holds Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for pressure vessels, GC1, GC2 pressure pipeline designing & construction certificates.
With over 250,000 square meters of building area and nearly 300 professional technical staff, Ruiding has completed over 500 engineering projects across various domestic and international industries, maintaining significant market share in the petrochemical sector.
Frequently Asked Questions
1. What is the company's main business?
Focus on the R&D, design, production, installation and commissioning of industrial three wastes (waste gas/waste liquid/solid waste) incineration treatment equipment and special boilers, and provide supporting equipment such as heat exchangers, sludge dryers, etc.
2. Do you have industry qualification certification?
The company has passed quality, environment, occupational health, and occupational hygiene and safety management system certifications, and holds second-level qualification for environmental protection engineering contracting, Class B special environmental engineering design, Class A boiler manufacturing qualification, Class A boiler installation, inspection and maintenance certificate, A2 pressure vessel design and manufacturing certificate, GC1, GC2 pressure pipeline design and installation certificate, and Class A environmental pollution control (waste, waste gas, waste liquid) qualification certificate.
3. What are the core products?
Waste gas incinerator: Regenerative thermal oxidation furnace (RTO), regenerative catalytic oxidation furnace (RCO), catalytic oxidation furnace (CO), high temperature thermal incinerator (TO), catalytic denitrification furnace (SCR)
Waste liquid incinerator: Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
Solid incinerator: Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
A-level boiler: Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
Plate heat exchanger: Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
Incineration auxiliary machine: Sludge dryer, customized burner, solid waste crusher, VOC catalyst
Waste liquid incinerator: Organic waste liquid incinerator, salt-containing waste liquid incinerator, heavy component residue incinerator
Solid incinerator: Combined rotary kiln incinerator, gas-controlled pyrolysis incinerator, fluidized bed incinerator, step-type incinerator
A-level boiler: Modular waste heat boiler, tunnel waste heat boiler, furnace-boiler integrated incineration boiler, large cavity membrane wall boiler, fire tube boiler
Plate heat exchanger: Fully welded pressure plate heat exchanger, high-efficiency vortex tube heat exchanger, high-efficiency spiral tube heat exchanger
Incineration auxiliary machine: Sludge dryer, customized burner, solid waste crusher, VOC catalyst
4. In what aspects are the technical advantages reflected? Have you ever had experience in cross-border cooperation?
We have 29 patented technologies covering incinerator structure optimization and heat recovery. The company has a first-class design team in China with solid theoretical foundation and rich design and practical experience. Designers combine operation of advanced devices at home and abroad to carry out process and structural design. The design response is fast, and plans can be modified according to buyer requirements with optimization suggestions based on data and processes.
5. What does the service scope include?
We provide full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, and support pressure pipeline and boiler renovation.
6. Are there any successful cases for reference?
We have served multiple industries including petroleum, chemical, pharmaceutical, and solid waste disposal. Typical cases include organic waste gas RTO system, chemical waste liquid incineration project, etc.
7. How to obtain cooperation or quotation?
You can submit your needs through the official website online form, or contact directly:
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
Tel: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China.
8. Is there any international business cooperation?
Holding independent import and export rights, we can provide equipment export and technical solution customization services for overseas customers.
