Waste Heat Recovery Water Tube Steam Boiler Precise Thermal Classification

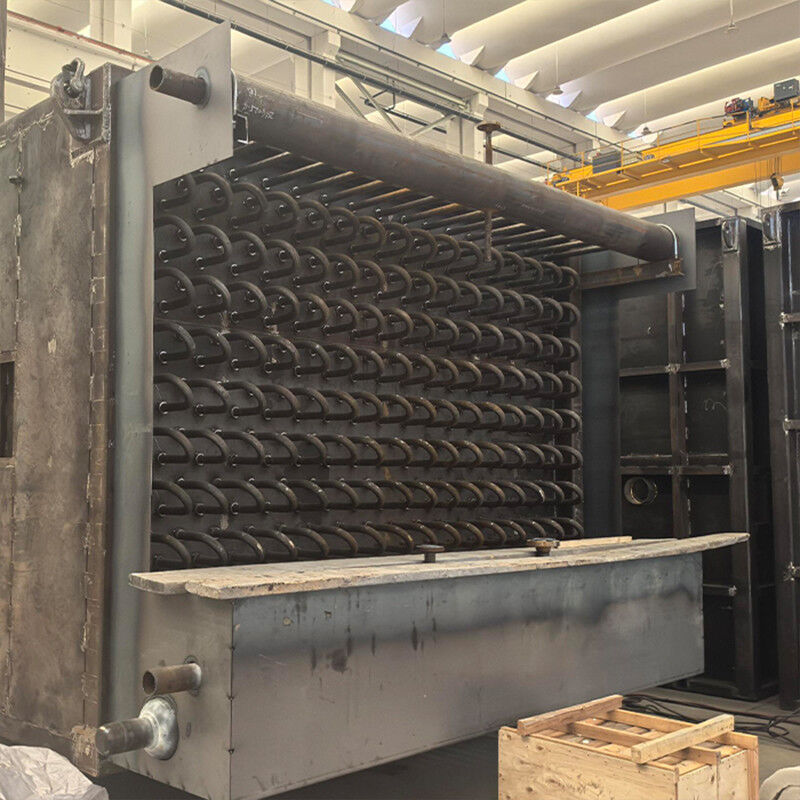

The modular boiler adopts a multi-stage heat exchange structure featuring a hierarchical system integrating evaporators and economizers, along with a steam temperature control unit. Through precise thermal classification design, waste heat is efficiently recovered and exhaust gas temperature is significantly reduced. The advanced ash cleaning system combines shock wave and sound wave dual-mode technology with a modular open-air layout to effectively suppress dust accumulation and reduce heat transfer efficiency attenuation, ensuring long-term efficient operation.

This modular boiler is specially customized for high-temperature, high-dust scenarios in refineries. It features a five-stage evaporator + four-stage economizer cascade heat exchange system (flue gas flow rate 297,990 Nm³/h, exhaust temperature ≤190℃), achieving a 30% increase in waste heat recovery efficiency. Through coordinated control of the two-stage superheater + water spray desuperheater (steam temperature accuracy ±2℃), it ensures continuous stable output of 11MPa/520℃ high-pressure steam. The innovative shock wave/sonic wave dual-mode soot blowing system (ash cleaning coverage ≥95%) combined with modular open-air layout reduces heat transfer efficiency attenuation to <5%, adapting to 7×24-hour full-load refinery operations.

This modular water tube boiler enables coordinated utilization of high calorific value fuel and industrial waste gas through multi-stage waste heat cascade recovery architecture. The system increases flue gas waste heat utilization by 30% and features an integrated evaporator-superheater-economizer three-stage heat exchange system combined with intelligent PID steam temperature control algorithm. Self-cleaning spiral heat exchange tube groups with nano-coating + shock wave soot blowing dual-effect anti-ash deposition technology and modular quick-installation design (single module replacement under 3 hours) suppress long-term operation heat transfer efficiency attenuation to less than 5%. Ideal for biomass power generation, chemical parks, and other scenarios requiring efficient recovery, precise temperature control, and long-term stability.

Especially suitable for installation environments with limited space, such as industrial production steam supply, where rapid response to load changes is required.

Ruiding has established the Jiangsu Province Clean Incineration Resource Engineering Technology Center and the Key Laboratory of the JICUI-Ruidings Joint Innovation Center.

This laboratory is equipped with advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzer, high-temperature combustion rate analyzer, and rapid equilibrium flash point tester. It possesses capabilities for heavy metal analysis, elemental analysis, off-gas calorific value analysis, ash melting point detection, incineration boiler water quality testing, sewage analysis, and volatile waste analysis.

Ruiding specializes in the engineering, fabrication, construction, and commissioning services of industrial waste combustion treatment systems including thermal oxidizers (incinerators), heat recovery systems (boilers), pressurized vessels, flue gas treatment systems (DeSOX, DeNOx), and plate heat exchangers.

Ruiding holds Environmental Protection Engineering Class 2 (waste gas, waste liquid, waste solid treatment) EPC certificate, ASME Certificate, Class A boiler manufacturing license, Class A boiler installation and Revamping & Maintenance certificate, A2 designing and manufacturing certificate for pressure vessels, and GC1, GC2 pressure pipeline designing & construction certificates.

Ruiding covers a building area of over 250,000 square meters and employs nearly 300 professional technical staff. We have completed over 500 engineering projects across various domestic and international industries, with significant market share in the petrochemical industry.
