Stable Industrial Water Tube Boiler Control Steam Heating Parallel Fully Automatic
|
Stable Industrial Water Tube Boiler Control Steam Heating Parallel Fully Automatic
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC(EAEU) |
| Model Number | Water tube boiler |
Product Details
Medium Inlet Temperature:
140℃
Medium Outlet Temperature:
186.4℃
Operating Pressure:
5.7Mpa
Inlet Flue Gas Flow:
241.6℃
Outlet Flue Gas Flow:
177℃
Number Of Tube Rows:
24*14
Delivery Time:
2-6months
Warranty:
1 Year
HS Code:
8402190000
Highlight:
Stable Industrial Water Tube Boiler
,Fully Automatic Industrial Water Tube Boiler
,parallel water tube steam boiler
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description
Stable Industrial Water Tube Boiler Control Steam Heating Parallel Fully Automatic
Intelligent Temperature Water Tube Boiler Control Steam Heating Parallel Stable and Durable
Overview
The industrial-grade modular water tube boiler features a fully automatic intelligent control system that precisely adjusts temperature, pressure, and combustion efficiency for 24-hour continuous stable operation. The high-pressure water pipe structure ensures durability with multiple safety protection devices. Ideal for industries requiring continuous heating such as textiles, printing, dyeing, and papermaking. Modular assembly simplifies installation and significantly reduces production cycles.
Product Introduction

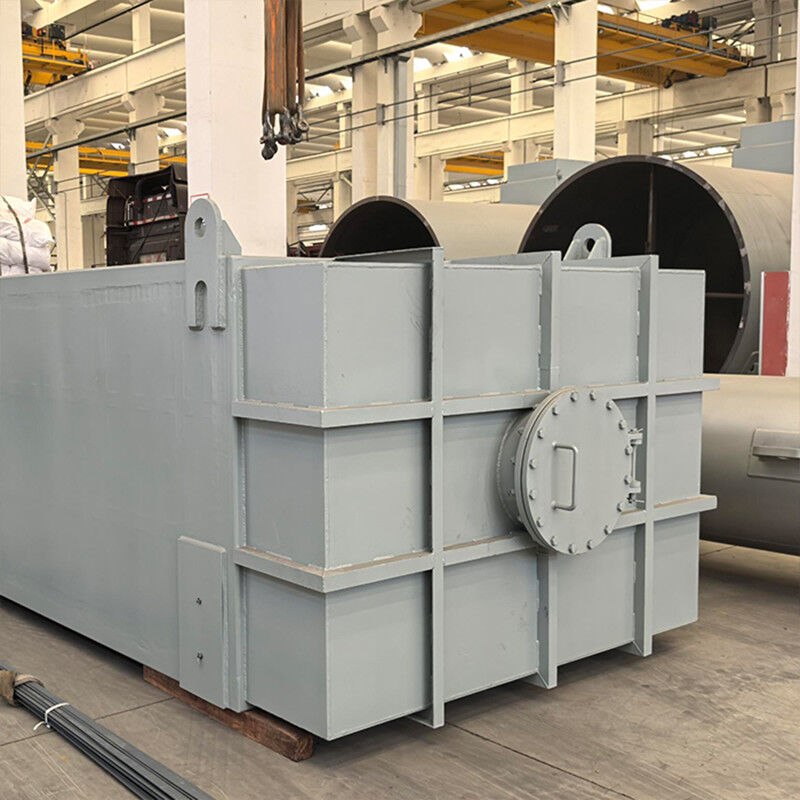

The economizer-A features an external thermal insulation modular box structure constructed from Q235B steel, supported on frame crossbeams via four support feet. The pressure-bearing section includes 24 tube banks arranged in 14 longitudinal rows with finned tube structure. Base tube specifications are Φ42×5 made of 20G steel (GB/T 5310), with fin material 08Al. Both inlet and outlet headers are Φ219×16, constructed from 20G steel (GB/T 5310).
The heating surface employs a horizontal serpentine tube configuration with in-line counterflow arrangement. Flue gas passes through the heat exchange tube bundle of economizer-A from bottom to top.
Technical Specifications
| Parameter | Value |
|---|---|
| Medium Inlet Temperature | 140℃ |
| Medium Outlet Temperature | 186.4℃ |
| Operating Pressure | 5.7Mpa |
| Inlet Flue Gas Flow | 241.6℃ |
| Outlet Flue Gas Flow | 177℃ |
Key Advantages
- Modular Structure: Divides traditional large boilers into multiple small modules for rapid installation and easier maintenance
- Heat Exchange System Design: Bent tube structure with multi-stage tube bundle layout enhances convective heat transfer efficiency and waste heat recovery
- Quality Assurance: Factory-manufactured, inspected, and tested pressure parts ensure reliable product quality
- Modular Integration Technology: Composite box structure reduces steel consumption by 30% and installation time by 50%
- Pressure Resistant Materials: High-strength steel tubes withstand pressures up to 6.0MPa with 3x wear resistance and 10+ year lifespan
- Intelligent Operation System: IoT monitoring provides real-time data with 95% fault warning accuracy and 40% reduced maintenance costs
Applications
Ideal for installation environments with limited space, industrial production steam supply, and applications requiring rapid response to load changes.
Research & Development
Ruiding operates the Jiangsu Province Clean Incineration Resource Engineering Technology Center and JICUI-Ruidings Joint Innovation Center Laboratory. The facility features advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, atomic fluorescence spectrophotometry, high-temperature combustion ion chromatography analyzers, and rapid equilibrium flash point testers.
Company Profile
Ruiding specializes in engineering, fabrication, construction, and commissioning of industrial waste combustion treatment systems including thermal oxidizers, heat recovery systems, pressurized vessels, flue gas treatment systems, and plate heat exchangers.
The company holds Environmental Protection Engineering Class 2 EPC certification, ASME Certificate, Class A boiler manufacturing license, A2 pressure vessel certification, and pressure pipeline design & construction certificates. With over 250,000 square meters of building area and nearly 300 technical staff, Ruiding has completed over 500 engineering projects across various industries.
Frequently Asked Questions
What is the company's main business?
Focus on R&D, design, production, installation and commissioning of industrial waste treatment equipment and special boilers, including supporting equipment such as heat exchangers and sludge dryers.
Do you have industry qualification certification?
The company holds quality, environment, occupational health, and safety management system certifications, along with Class A boiler manufacturing, A2 pressure vessel design, and environmental pollution control qualifications.
What are the core products?
- Waste gas incinerators: RTO, RCO, CO, TO, SCR systems
- Waste liquid incinerators: Organic, salt-containing, and heavy component residue systems
- Solid incinerators: Rotary kiln, pyrolysis, fluidized bed, and step-type systems
- A-level boilers: Modular waste heat, furnace-boiler integrated, and membrane wall boilers
- Plate heat exchangers: Welded pressure, vortex tube, and spiral tube systems
- Incineration auxiliary equipment: Sludge dryers, burners, crushers, and VOC catalysts
What are the technical advantages?
With 29 patented technologies covering incinerator structure optimization and heat recovery, Ruiding's design team combines theoretical expertise with practical experience to provide fast response design solutions and optimization recommendations.
What does the service scope include?
Full-process services from project consultation, scheme design, equipment manufacturing to installation and commissioning, including pressure pipeline and boiler renovation support.
How to obtain cooperation or quotation?
Phone: +86 15606162805 ; +86 0510-87418884
Email: ruiding@rdee.com.cn
Address: Xinzhuang Industrial Concentration Zone, Yixing City, Jiangsu Province, China
Is there any international business cooperation?
Holding independent import and export rights, we provide equipment export and technical solution customization services for overseas customers.
