Customized Pillow Plate Heat Exchanger Up To 150psi Pressure Stainless Steel
|
Customized Pillow Plate Heat Exchanger Up To 150psi Pressure Stainless Steel
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC(EAEU) |
| Model Number | Clamp-on heat exchanger |
Product Details
Mounting Type:
Horizontal Or Vertical
Maximum Pressure:
Up To 150 Psi
Material:
Stainless Steel
Efficiency:
High Heat Transfer Coefficient
Application:
Heating Or Cooling
Corrosion Resistance:
High
Delivery Time:
1 Week - 2months
Warranty:
1 Year
HS Code:
8419500090
Highlight:
Customized Pillow Plate Heat Exchanger
,150psi Pillow Plate Heat Exchanger
,Stainless Steel pillow heat exchanger
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description
Customized Pillow Plate Heat Exchanger
High-performance clamp-on heat exchanger designed for industrial applications with pressure ratings up to 150psi, manufactured from premium stainless steel materials.
Product Overview
Clamp-type heat exchangers offer exceptional vibration and shock resistance, making them ideal for industrial environments with complex vibration conditions. In workshops where large mechanical equipment operates, traditional heat exchangers may experience component loosening and connection damage due to vibration, compromising heat exchange efficiency and equipment lifespan. Our clamp-type heat exchanger features a specialized structural design that enhances overall stability, ensuring reliable operation in vibrating environments and providing continuous, stable heat exchange protection for industrial processes.

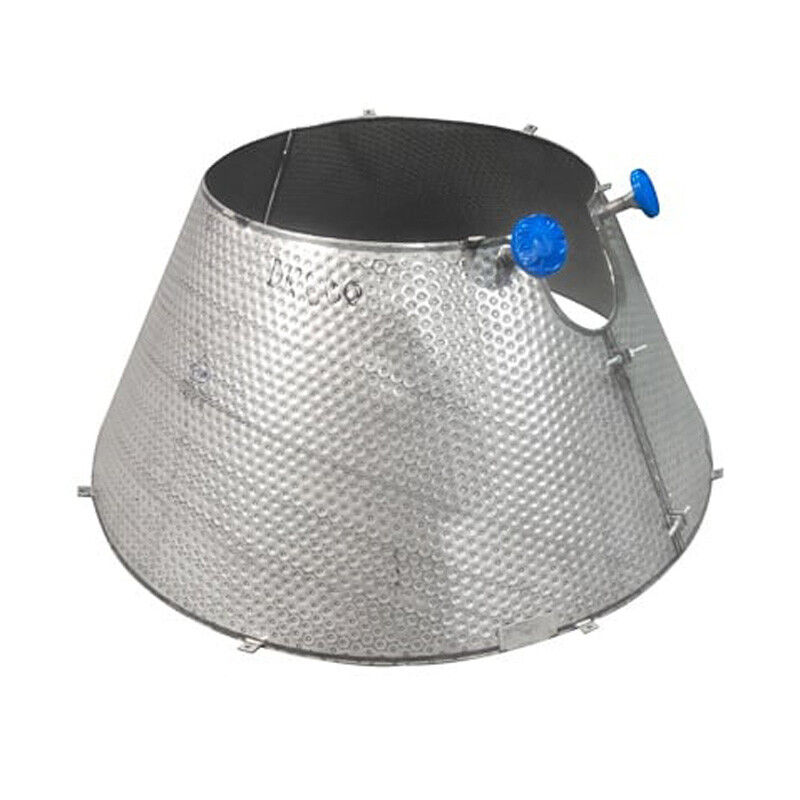

Product Image
Product Introduction
The clamp-type heat exchanger is an advanced derivative of pillow-shaped plate heat exchanger technology. It installs directly onto existing storage tanks or containers via clamping mechanisms, providing non-invasive heating and cooling capabilities without structural modifications.
Key Design Features
- Modular Structure: Supports double-layer embossed plates (symmetrical expansion channels) or single-layer embossed plates (substrate + expansion thin plate) with enhanced contact heat transfer efficiency through thermal conductive mud
- Quick Installation: No welding or modification required to original container structure; compatible with various tank shapes including cylindrical and special-shaped configurations
- Wide Compatibility: Suitable for food processing (dairy products, beverage containers), chemical reactors, oil tanks, fermentation tanks, and other industrial applications; improves convection efficiency while reducing energy consumption
Technical Specifications
| Category | Parameter Description |
|---|---|
| Material | Stainless steel (SS304, 316L, 2205 duplex steel), Hastelloy, titanium, etc. |
| Plate Thickness Combination | Double-layer embossed board: 0.8mm+0.8mm, 1.0mm+1.0mm, 1.5mm+1.5mm, etc. Single-layer embossed board: 0.8mm+2.0mm, 1.0mm+2.5mm, 1.2mm+4-15mm, etc. |
| Heat Transfer Medium | Air, water, steam, thermal oil, pure liquid medium |
| Maximum Pressure | 60 Bar |
| Surface Treatment | Polishing, sandblasting and other customized treatments |
| Standard Specification | DIN, GB, ISO, JIS, ASME and other international standards |
Key Advantages
- Clamp design enables quick disassembly and assembly for easy equipment cleaning, maintenance, and replacement without interfering with original container functionality
- Pillow-shaped expansion channel with thermal conductive mud contact layer enhances turbulent heat transfer, improving efficiency by 20%+; wide channel design reduces pressure drop and pumping energy consumption
- Full customization available for size, shape, and material selection including corrosion-resistant stainless steel and acid/alkali-resistant titanium alloy
- Flexible combination of single-layer/double-layer embossed plates to meet diverse heat load requirements
Applications
- Surface mounting on existing tanks or containers for heating or cooling applications
- Dairy processing tanks
- Beverage processing vessels
- Heating or cooling oil tanks
- Various reactors
- Extruder-dryers
- Heat sinks
- Fermenters and beer vessels
- Pharmaceutical and processing vessels
Research & Development
