Detachable Fuel Gas Heat Recovery Heat Exchanger S31603 Precise Control
|
Detachable Fuel Gas Heat Recovery Heat Exchanger S31603 Precise Control
| Place of Origin | China |
| Brand Name | RUIDING |
| Certification | ASME/GB/ISO/EAC(EAEU) |
| Model Number | Gas to gas pillow plate heat exchanger |
Product Details
Heat Exchange Type:
Gas To Gas
Material:
S31603
Heat Duty:
2720KW
Design Pressure:
25kpa
Plate Spacing:
3-5 Mm
Pressure Drop:
1300Pa
Delivery Time:
1 Week - 2months
Warranty:
1 Year
HS Code:
8419500090
Highlight:
detachable fuel gas heat recovery heat exchanger
,fuel gas heat recovery heat exchanger s31603
,detachable flue gas heat recovery unit
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
L/C,T/T
Product Description

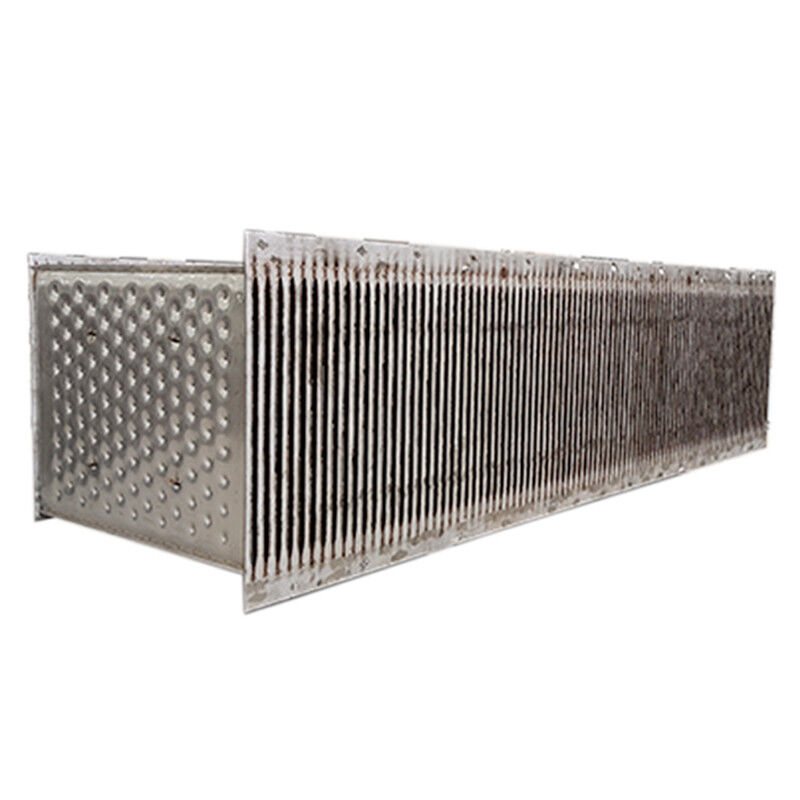

Detachable Fuel Gas Heat Recovery Heat Exchanger S31603
Precise Temperature Control with Strong Adaptability
The gas-to-gas pillow plate heat exchanger is engineered for industrial energy conservation with its compact, lightweight design that minimizes space requirements and simplifies installation in confined industrial settings.
Product Introduction
This customized waste gas preheater is integrated into our catalytic oxidation system, where waste gas flows internally through the plates on the cold side while flue gas circulates on the hot side. The design addresses common clogging issues by enabling high-pressure chemical boiling and washing processes for superior cleaning efficiency and cost savings.
Technical Parameters
| Parameter | Hot Side | Cold Side |
|---|---|---|
| Heat Duty | 2720KW | |
| Design Pressure | 25kpa | |
| MOC | S31603 | |
| Medium Composition | Flue Gas | Air |
| Flow Rate | 60247Nm³/h | 60270Nm³/h |
| Inlet Temperature | 252℃ | 75℃ |
| Outlet Temperature | 135℃ | 194℃ |
| Pressure Drop | 1300Pa | 2200Pa |
Key Advantages
- Laser welded process ensures high-quality welding seams
- Inflated channels create high turbulence flow for superior heat transfer efficiency
- Available in multiple materials including stainless steel SS304, 316L, 2205, Hastelloy, and titanium
- Custom-defined sizes and shapes to meet specific requirements
- Specialized pillow plate design ensures low inner channel pressure drop
- Wide outer channels minimize pressure drops and prevent dust accumulation
- Fully welded channels provide excellent seal performance
Applications
- Preheat combustion air with exhausting gas
- Recovery heat of exhausting gas
- Heat exchanger between gas & gas or air & air
- Heat exchanger for chemical reaction of gaseous medium
- Waste gas heat exchanger
Research & Development
Ruiding operates the Jiangsu Province Clean Incineration Resource Engineering Technology Center and the JICUI-Ruidings Joint Innovation Center, equipped with advanced analytical instrumentation including ICP spectrometry, atomic absorption spectrophotometry, and comprehensive testing capabilities for heavy metals, elemental analysis, and waste characterization.
Company Profile
Ruiding specializes in engineering, fabrication, construction, and commissioning of industrial waste combustion treatment systems including thermal oxidizers, heat recovery systems, pressure vessels, flue gas treatment systems, and plate heat exchangers.
With over 250,000 square meters of building area and nearly 300 technical staff, we have completed more than 500 projects across various industries, maintaining significant market presence in the petrochemical sector.
Frequently Asked Questions
What is the company's main business?
We focus on R&D, design, production, installation and commissioning of industrial waste (gas/liquid/solid) incineration treatment equipment and special boilers, along with supporting equipment including heat exchangers and sludge dryers.
Do you have industry qualification certification?
We hold comprehensive certifications including quality, environment, occupational health, and safety management systems, along with Class A boiler manufacturing, pressure vessel design, and environmental protection engineering qualifications.
What are the core products?
Our product range includes waste gas incinerators (RTO, RCO, CO, TO, SCR), waste liquid incinerators, solid incinerators, A-level boilers, plate heat exchangers, and incineration auxiliary equipment.
What technical advantages do you offer?
With 29 patented technologies covering incinerator optimization and heat recovery, our experienced design team combines theoretical expertise with practical experience to deliver optimized solutions tailored to client requirements.
What services do you provide?
We offer comprehensive services from project consultation and design to equipment manufacturing, installation, commissioning, and support for pressure pipeline and boiler renovations.
Do you have international business operations?
Yes, we hold independent import and export rights and provide equipment export and technical solution customization services for international customers.
