Frameless Design Corner Tube Boilers
Compact layout corner tube boiler with natural circulation and efficient heat transfer technology.
Overview

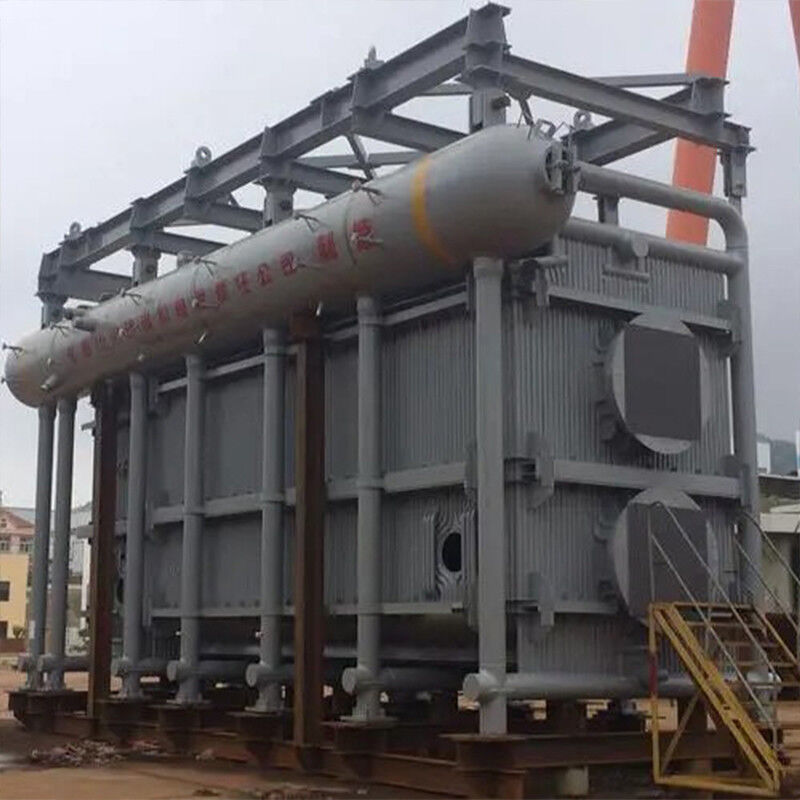

The corner tube boiler features a frameless natural circulation design that eliminates traditional steel frame structures. This innovative approach optimizes space utilization through longitudinal drum arrangement and horizontal flue layout, enhancing structural compactness. The integrated steam pre-separation system directs steam into the liquid surface via top vertical connecting pipes, reducing secondary evaporation losses and significantly improving steam output efficiency. Full membrane wall quick installation technology employs modular water-cooled walls and header pre-welding processes to simplify on-site installation and enable rapid full-load operation verification.
Product Features
- Natural circulation design without framework: Eliminates traditional steel frame structure with longitudinal drum arrangement and horizontal flue, shortening overall length by 30% and occupying only 70% of conventional boiler area
- Integrated steam pre-separation: Top vertical connecting pipe directs steam into liquid surface to avoid secondary evaporation loss, increasing steam output by 5%
- Full membrane wall fast installation technology: Modular water-cooled wall and header pre-welding shortens on-site installation cycle by 40%, supporting 72-hour full-load trial operation verification
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall length shortened | 30% |
| Size occupied | Only 70% of conventional boilers |
| Steam output per unit area increased | 30% |
| Steam output increased | 5% |
| Shortened on-site installation period | 40% |
| Full-load trial operation verification period | 72 hours |
| Steam output stability | Evaporation fluctuation ≤±3% |
Key Advantages
- Frameless design with vertical drum layout occupies only 70% of conventional boiler space
- Modular membrane water-cooled wall pre-welding shortens on-site installation by 40%
- Steam pre-separation technology reduces evaporation loss and increases production by 5%
- Vertical layout with frameless design increases steam production per unit area by 30%
