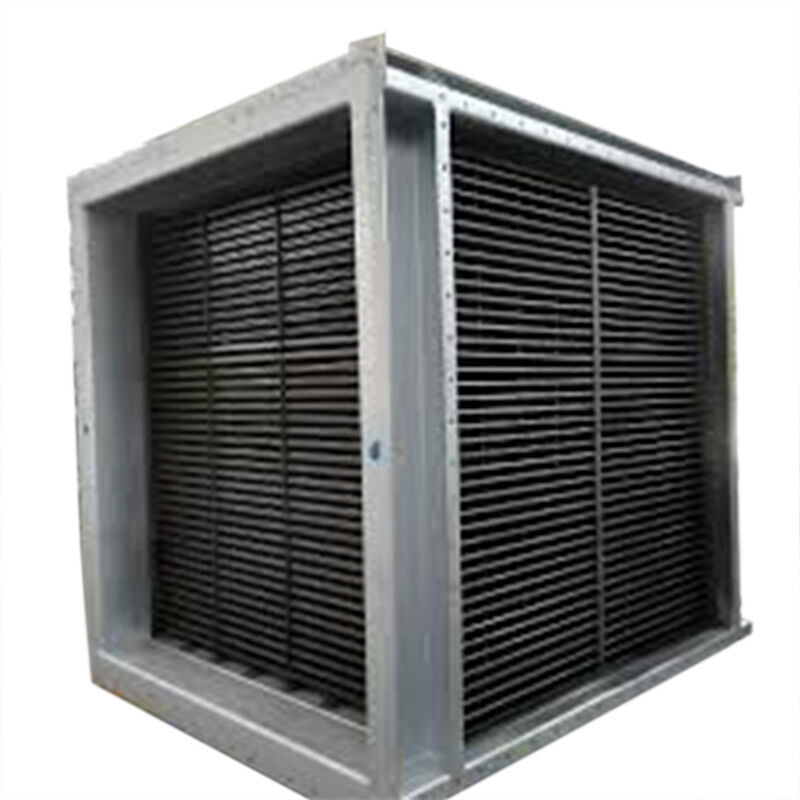

Anti Scaling Surface Air To Air Plate Heat Exchanger
Medium Flow: 86,666 Nm³/H
Simple Maintenance Gas to Gas Pillow Plate Heat Exchanger with Anti Scaling Surface and Quick Installation
Product Overview
The pillow-shaped plate structure of this heat exchanger provides excellent anti-vibration performance, making it particularly suitable for industrial environments with vibration sources. Even under complex working conditions such as fan vibration and pipeline fluctuations, the special connection method and structural strength between plates effectively prevent leakage and damage. The anti-scaling surface treatment technology reduces dirt adhesion on plate surfaces, maintaining long-term stable heat exchange efficiency. The high-sealing design eliminates gas leakage, ensuring safety and efficiency throughout the heat exchange process.
Product Introduction
In industrial applications, impurities in exhaust gas or high-temperature conditions can cause plate adhesion and blockage, requiring regular cleaning. Conventional plate heat exchangers are limited by manufacturing processes and cannot withstand high pressures, relying only on water flushing with limited cleaning effectiveness and high water waste. Our improved manufacturing process creates an air-to-air pillow plate heat exchanger with high pressure bearing capacity on the slab side, supporting chemical boiling and washing processes to significantly reduce cleaning costs and improve efficiency.
Technical Parameters
| Parameter | Hot Side | Cold Side |
|---|---|---|
| Heat Load | 9096 KW | |
| Design Pressure | 30 kpa | |
| Material | S31603 | |
| Medium Composition | Flue Gas | Exhaust Gas |
| Medium Flow | 86,666 Nm³/h | 115,000 Nm³/h |
| Inlet Temperature | 439℃ | 110℃ |
| Outlet Temperature | 160℃ | 318℃ |
Key Advantages
High Pressure Bearing and Corrosion Resistance
Design pressure of 30kPa with optimized plate structure and S31603 stainless steel material improves pressure bearing capacity for impurity flue gas and high-temperature plate environments. S31603 stainless steel resists high temperature and corrosion, withstanding chemical corrosion in 439℃ high-temperature flue gas and exhaust gas for extended periods.
High-Flow Efficient Heat Exchange
Medium flow rate reaches 115,000 Nm³/h (cold side) with wide channel design that reduces blockage risk, ensuring efficient heat exchange between high-flow exhaust gas and flue gas (heat load 9,096kW). Large inlet temperature difference (439℃→160℃) quickly reduces high-temperature flue gas temperature while preheating exhaust gas to 318℃, improving system energy efficiency.
Adaptable to Chemical Boiling and Washing Process
Enhanced sealing and plate deformation resistance supports high-pressure chemical cleaning, solving conventional water washing resource waste problems and reducing maintenance costs.
Applications
- Preheat combustion air with exhausting gas
- Recovery heat of exhausting gas
- Heat exchanger between gas & gas or air & air
- Heat exchanger for chemical reaction of gaseous medium
- Waste gas heat exchanger
