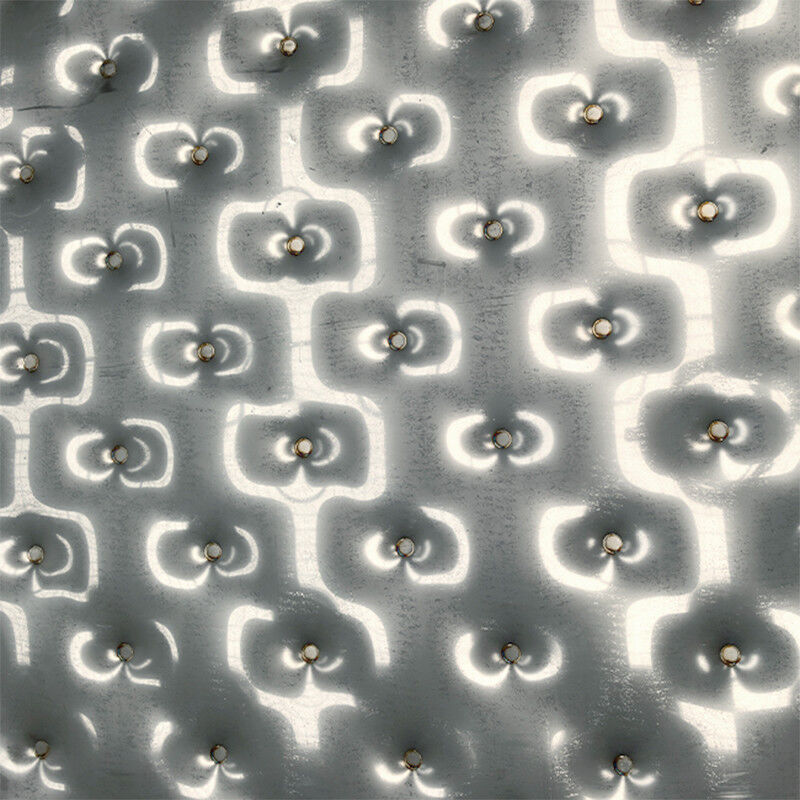

High Pressure Resistance Laser Welded Pillow Plate No Stress Cracking

As a critical heat exchanger component, our pillow plates feature unique manufacturing using advanced laser welding technology. The process involves precise splicing and fixture alignment followed by laser welding, then expansion via air or hydraulic methods to meet specific process requirements.

Our enhanced pillow plates are integrated into wide channel plate heat exchangers for saltwater wastewater incineration systems. These systems handle flue gas containing high concentrations of inorganic salt dust, which can corrode metal materials. Our design effectively controls dust accumulation through optimized flue gas side spacing and plate height parameters.

• High Dust & Temperature Adaptability: Withstands 479℃ inlet temperature, dropping to 348℃ outlet. S30408 material provides high-temperature oxidation resistance. Wide channel design prevents high-concentration dust deposition and reduces blockage risk.
• Salt Corrosion Resistance & Low Resistance Design: S30408 stainless steel withstands chloride ion corrosion from salt-containing flue gas. Minimal 400 Pa hot side resistance ensures smooth flue gas flow.
• Large-Flow Flue Gas Treatment Capacity: Handles 31,000 Nm³/h flue gas flow with optimized plate height and flow channel width for stable high-dust operation.

• Dimple Jacket
• Clamp-on Heat Exchanger
• Pillow Plate Type Falling Film Chiller
• Ice Bank for Ice Thermal Storage
• Static Melting Crystallizer
• Sewage Water Heat Exchanger
• Heat Sink Heat Exchanger
• Evaporative Plate Condenser
• Dimpled Tank
• Immersion Heat Exchanger
• Flue Gas Heat Exchanger
• Reactor Internal Baffles Heat
• Bulk Solid Heat Exchanger

Ruiding operates the Jiangsu Province Clean Incineration Resource Engineering Technology Center and JICUI-Ruidings Joint Innovation Center Laboratory, equipped with advanced detection equipment including ICP inductively coupled plasma emission spectrometry, atomic absorption spectrophotometry, and comprehensive analysis capabilities for heavy metals, elemental analysis, and waste characterization.

Ruiding specializes in engineering, fabrication, construction, and commissioning services for industrial waste combustion treatment systems including thermal oxidizers, heat recovery systems, pressure vessels, flue gas treatment systems, and plate heat exchangers.

With over 250,000 square meters of building area and nearly 300 technical staff, we've completed 500+ projects across various industries, holding significant market share in petrochemical applications. Certifications include Environmental Protection Engineering Class 2, ASME, Class A boiler manufacturing, A2 pressure vessel design, and comprehensive quality management systems.

We focus on R&D, design, production, installation and commissioning of industrial waste treatment equipment and special boilers, providing supporting equipment including heat exchangers and sludge dryers.

We hold quality, environment, occupational health, and safety management system certifications, along with Environmental Protection Engineering Class 2, Class A boiler manufacturing, A2 pressure vessel design, and comprehensive environmental pollution control qualifications.

• Waste Gas Incinerators: RTO, RCO, CO, TO, SCR systems
• Waste Liquid Incinerators: Organic, salt-containing, and heavy component residue systems
• Solid Incinerators: Rotary kiln, pyrolysis, fluidized bed, and step-type systems
• A-level Boilers: Modular, tunnel, integrated, and membrane wall designs
• Plate Heat Exchangers: Fully welded, vortex tube, and spiral tube models
• Incineration Auxiliary Equipment: Sludge dryers, burners, crushers, and VOC catalysts

We hold 29 patented technologies covering incinerator optimization and heat recovery. Our design team combines solid theoretical foundation with practical experience, offering rapid design response and optimization based on client requirements.

Full-process services from project consultation and design to equipment manufacturing, installation, commissioning, and pressure pipeline/boiler renovation support.

Yes, we hold independent import and export rights and provide equipment export and technical solution customization for international customers.
